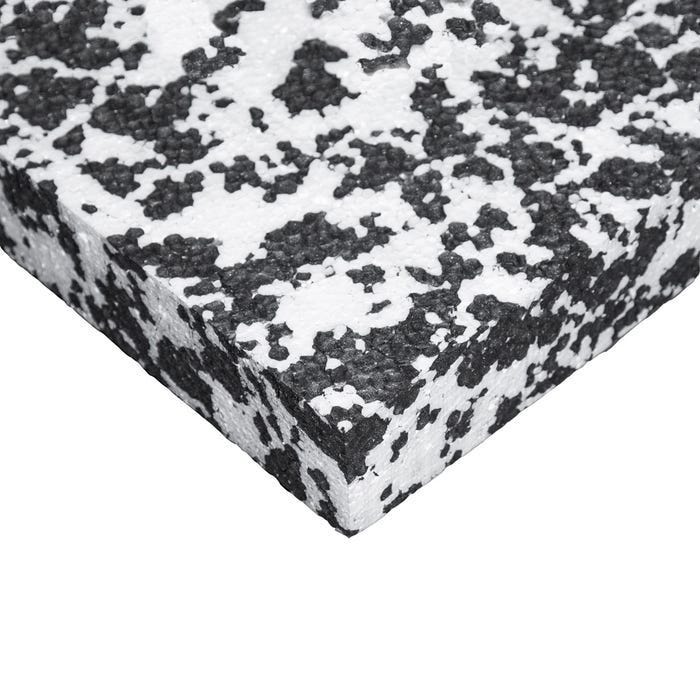

Jabfloor 70 Polystyrene EPS Insulation 50mm x 1200mm x 2400mm Pack of 12

What is Jabfloor 70 Polystyrene EPS Insulation 50mm?
Jabfloor 70 EPS 50mm floor insulation reduces downward heat loss between floors, walls, and roofs, protecting the warmth within your building and helping to reduce your energy bills. Jabfloor 70 EPS insulation 50mm can withstand high moisture areas as well as the effects of freeze-thaw.

Easy to install and non-toxic, you can choose from a selection of compressive strengths to suit different types of buildings including domestic and industrial.

What is the R-value of 50mm EPS?
It is an incredibly affordable yet effective insulation solution, having an R-value of 1.32m2K/W.

Features and benefits of Jabfloor 70 Polystyrene EPS Insulation 50mm:

• Thermal conductivity: 0.038 W/mK
• Provides cost-effective insulation for the lifetime of the building
• Excellent compression properties
• 100% recyclable
• Achieves an A+ rating in the BRE Green Guide to Specification
• Available with Class E fire retardant additive
• Flood proof
• Lightweight and easy to handle
• Nominal density: 15 Kg/m3
• Compressive strength 1%  (kN/m2) – 20
• Compressive strength 10% (kN/m2) –  70
• Shear strength (kN/m2) –  55
• Shear modulus (kN/m2) – 2100

Applications for Jabfloor 70 Polystyrene EPS Insulation 50mm:

Jabfloor is a floor insulation board that achieves the required U-value and compressive performance on a range of different floor applications:

• Below ground supported slab
• Above slab below chipboard
• Above slab below screed
• Precast suspended concrete
• Cold store
