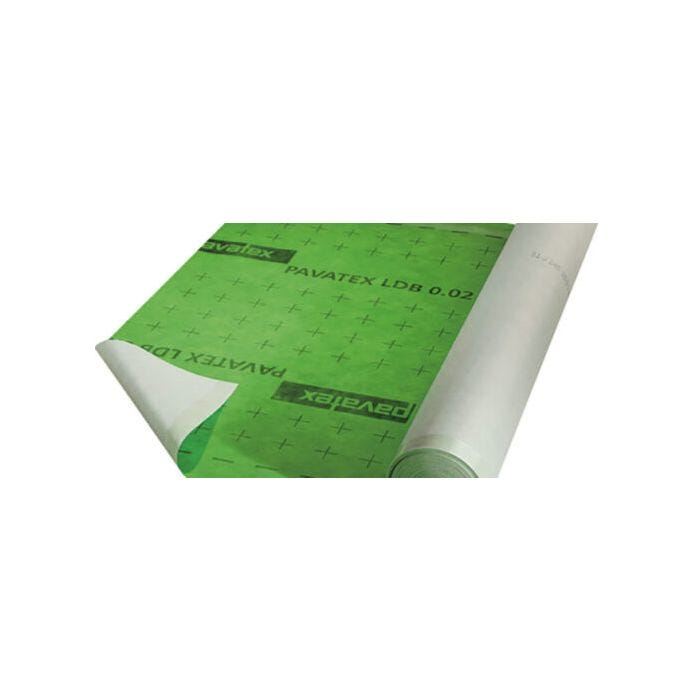

Pavatex Pavatex LDB 0.02 External Membrane 1.5m x 50m

Features:

• Vapour open airtight membrane with two-way integrated self-adhesive strips.
• Suitable for existing roof and wall retrofit from outside.
• A minimum thickness of 35mm insulation should be used on the outside of the membrane to avoid condensation.
• If mechanically secured, Pavatex LDB 0.02 can be left exposed to the weather for 1 week.

Application:

• Pavatex LDB 0.02 is used as a second fit airtightness layer when re-covering the roof while retaining and/or extending the existing between-rafter insulation with Pavaflex.
• A top cover with Isolair (minimum thickness 35 mm) must then be applied.
• The airtight seal is formed with the Pavatex LDB 0.02 laid flat, directly on the upper side of the rafters.
• The longitudinal joints are glued using the integrated two-way self-adhesive strips.
• Airtight glueing of the transverse joints, the connections and penetrations are done using Pavatex sealing products.
