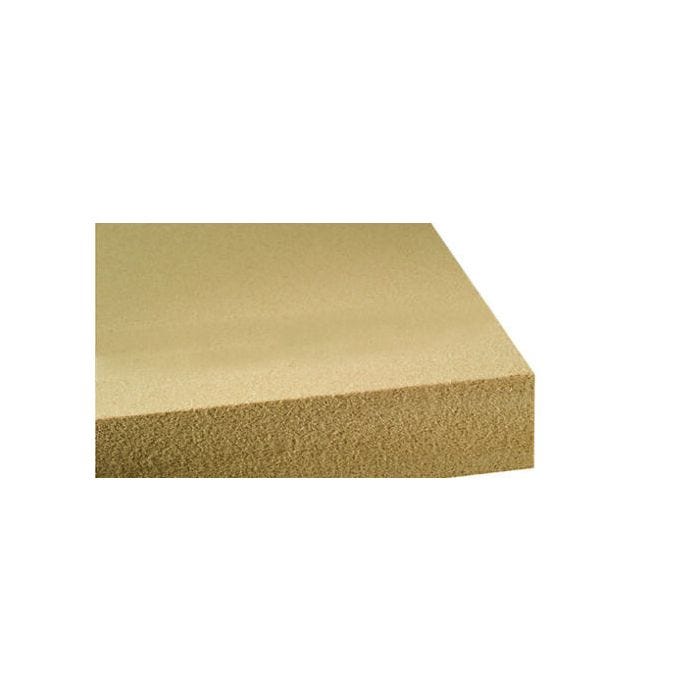

Pavatex Pavatherm Board 80mm x 1100mm x 600mm 0.66m2

Features:

• High compressive strength board, can be applied on a cross laminated timber (clt) structure, timber/steel frame with an external osb/ply layer or on existing masonry structure to receive cladding battens (no brackets required)
• Used as a secondary board to increase the thickness of primary Pavatex t&g insulation board such as Isolair & Pavatherm-combi
• Must be protected with either Pavatex adb breathable membrane or Pavatex weather resistance t&g insulation boards such as Isolair
• Board surface is not suitable for render or plaster. can be used between studs and rafters

Technical:

• Bulk density ρ [kg/m³] – 110
• Thermal conductivity (en 13171) λᴰ [w/(mk)] – 0.038
• Vapour diffusion resistance coefficient μ – 3
• Compressive stress at 10% compressive deformation [kpa] – 50
• Tensile strength perpendicular to plane of board [kpa] – 2.5

Application:

• Roof - over or under rafter with a base (ply/osb). wall – on to clt, studs with a base or existing masonry
• Floor - between or under joints with a base
• For all external application the boards must be protected by appropriate Pavatex primary external boards or breathable membrane
• Storage – store dry and protected from damage. Only install when dry
