Soprema XPS CB Plinth & Perimeter Board 60mm x 600mm x 1250mm 5.25m2 7 Pack

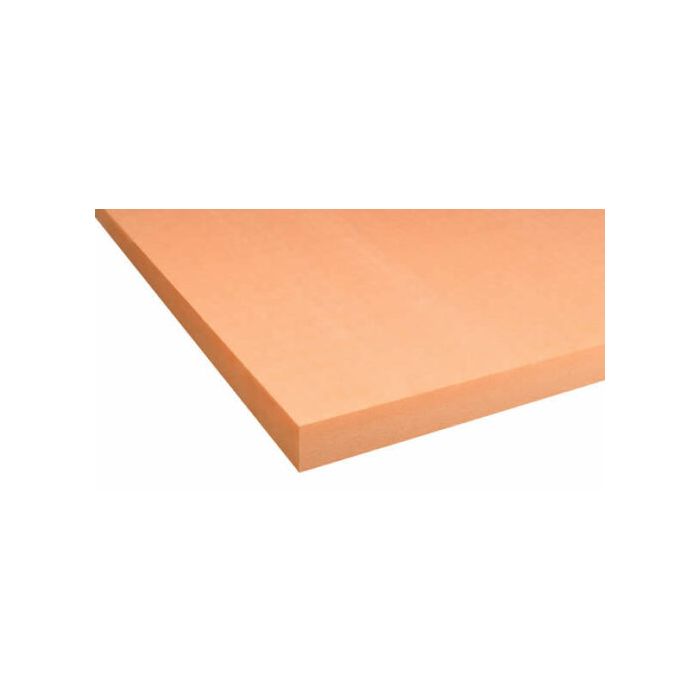

XPS CB is a rigid thermal insulation board made of extruded polystyrene (XPS) foam produced according to climate-friendly CO2 technology.

Technical:

• Characteristics Thermal conductivity (W/(m.K)) (EN 12667)
• 30 – 60 mm – 0.033
• 70 – 120 mm – 0.035
• Density (kg/m3) - 30-35
• Edge profile - Straight edge
• Surface - Rough
• Compressive strength at 10 % deformation (kPa) (EN 826) - CS(10\Y)300
• Dimensional stability (EN 1604)  - DS(70,90)
• Long term water absorption by immersion (%) (EN 12087) - WL(T)0,7
• Reaction to fire (EN 13501-1) - E
• Water vapour permeability (μ) (EN 12086) - 150
• Tensile strength perpendicular to faces (kPa) (EN 1607) - TR200
• Compressive creep (EN 1606) 60 – 120 mm - CC(2/1,5/50)130

Application:

• XPS CB is mainly used as thermal insulation of interior walls. The rough surface of the panel allows interior plastering.
• The board comes with a straight edge profile
• Color - Orange
• Use a suitable adhesive for adhesion to underground walls
• Always consult the local regulations and contact the manufacturer for technical questions
• After installation the insulation boards must be protected against weather conditions and sunlight
