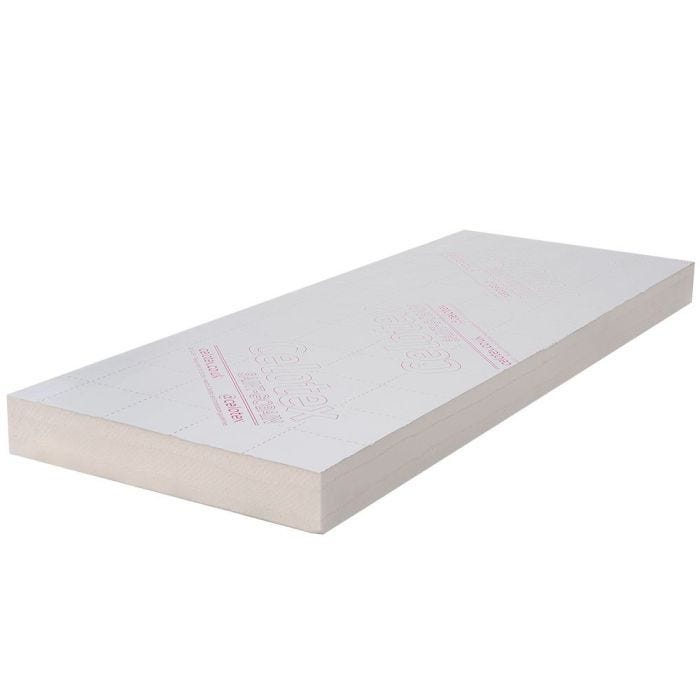

Celotex CW4000 is a partial fill cavity wall insulation board. This easy-to-install polyisocyanurate (PIR) board offers exceptional thermal performance and consists of a low emissivity foil facing.
What is Celotex CW4000 Cavity Wall Insulation Board?
Celotex CW4000 is a versatile insulation material with PIR foam and insulation core, delivering thermal conductivity of 0.022 W/mK. CW4000 is specifically designed for the cavity and optimum thermal performance.
It is important to protect your hands against sharp edges while handling this product by wearing protective gloves. You should also wear a dust mask and safety glasses when cutting and drilling to protect your respiratory system.
Features and benefits of Celotex CW4000 Cavity Wall Insulation Board:
Excellent thermal performance with a thermal conductivity of 0.022 W/m.K.
Low emissivity foil facing provides improved thermal performance in sealed cavity air spaces, improving the achievable U-value.
Easy to install – light and rigid which assists with ease of transportation, handling, and fitting.
BBA certified – assessed by the BBA as fit for use in defined partial fill cavity wall applications if installed, used, and maintained as set out in the certificate.
Celotex CW4000 achieves a BRE Green Guide Rating of A.
Board/roll size: width 450mm, length 1200mm
Thickness: 40-100mm
Material: PIR
Applications for Celotex CW4000 Cavity Wall Insulation Board:
What is the difference between CW4000 and GA4000 Celotex?
Both the Celotex CW4000 and GA4000 (as well as TB4000 & XR4000) are made from the the same insulation material, but are made for different applications.
The CW4000 is for use in partial fill cavity wall applications and is supplied in smaller sheet sizes at 1200mm x 450mm (0.54m2), to fit standard wall tie spacing for ease of installation.
Does this have the same thermal properties as standard Celotex?
The Celotex CW4000 and GA4000 range have the same excellent thermal performance with a thermal conductivity of 0.022 W/m.K.
Both boards have a low emissivity foil facing with the differnce being CW4000 sheets are smaller for use in a partial fill cavity.
What size are the boards and are these sold in packs?
Celotex CW4000 is supplied in sheet sizes of 1200mm x 450mm (0.54m2) and are sold in pack quantities.
The number of sheets in a pack will depend on the thickness of the sheet.
Can you fit 100mm CW4000 Celotex directly to a new plasterboard wall?
We advise that the CW4000 range is not installed on the internal side of the wall as this product is only designed and tested as a partial fill cavity wall insulation.
