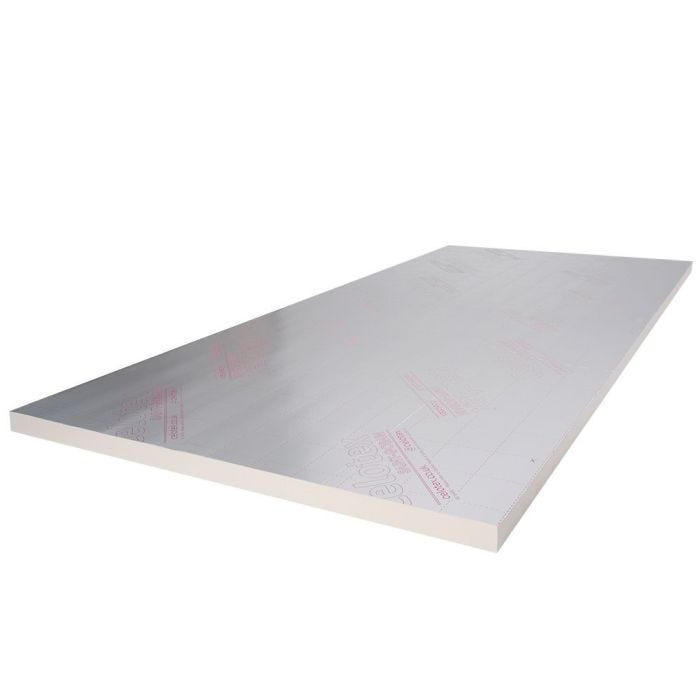

Celotex GA4100 Insulation Board 100mm x 1200mm x 2400mm
£32.75£27.29
In stock
SKU
285261000
Product Description
Celotex GA4000 is an easy-to-install polyisocyanurate (PIR) insulation board with excellent thermal performance, featuring a low emissivity foil facings which improve thermal insulation. It can be used in roof, wall, and floor applications.
Celotex GA4000 insulation board eliminates cold spots while being flexible and can fit in a variety of spaces such as a floor, wall, and roof. As PIR boards, they are rigid and lightweight, so you can transport them with ease. These high-quality multi-purpose insulation boards help you cut down on your energy use. Celotex insulation products have zero ozone depletion potential (OPD) and low global warming potential (GWP), with the materials involved in manufacturing being environmentally friendly.
Celotex GA4000 insulation boards have been scored with a class 1 fire rating, meaning they don’t catch fire easily.
Is 100mm PIR insulation enough?
This depends on where in your building you plan on installing the insulation. 90mm of PIR is the minimum acceptable level of insulation for a wall whereas 100mm in the roof is too thin.
100mm Celotex is one of the most popular Celotex insulation thicknesses.
Features and benefits of Celotex GA4100 100mm:
Excellent thermal performance with a thermal conductivity of 0.022 W/m.K.
Low emissivity foil facing provides improved thermal performance in sealed cavity air spaces.
Easy to install – Celotex boards are light and rigid, assisting with ease of transportation, handling, and fitting.
BBA certified – Celotex GA4000 has been assessed by the BBA as fit for use in defined roof, wall, and floor applications if installed, used and maintained as set out in the certificate.
Celotex GA4000 achieves a BRE Green Guide Rating of A, demonstrating environmental performance in your BREEAM assessments.
Lightweight 2400 x 1200mm boards.
Low emissivity foil facing.
Applications for Celotex GA4100 insulation boards 100mm:
Ground Floor - Concrete Slab
Ground Floor - Suspended Timber Joist
Ground Floor - Beam and Block
Ground Floor - Upgrading Existing Concrete Slab
External Wall - Timber Frame Internal Linings
External Wall - Timber Frame Sheathing
External Wall - Between Timber Frame Studs
External Wall - Solid Masonry Internal Linings
Pitched Roof - Over Timber Rafters
Pitched Roof - Sarking
Pitched Roof - Below Timber Rafters
Pitched Roof - Between Timber Rafters
Pitched Roof - Loft insulation - Between and Over Timber Joists
What do I use to seal the joints between the GA4100 boards?
We would recommend using foil tape to seal the joints between GA4100 and any PIR insulation boards.
Is the thermal value of GA4050 the same as GA4100?
When comparing thermal values of a product it is important to understand the difference between an U-value , R-value and Lambda Value. It is the same material on the whole GA4000/TB4000/XR4000 ranges, which is PIR insulation. The boards have the same thermal conductivity, but it is the thickness which will determine the thermal value. You can use the u value calculator and fine out more information on the prodcuts in the data sheet. Both can be found on the prodcut page.
